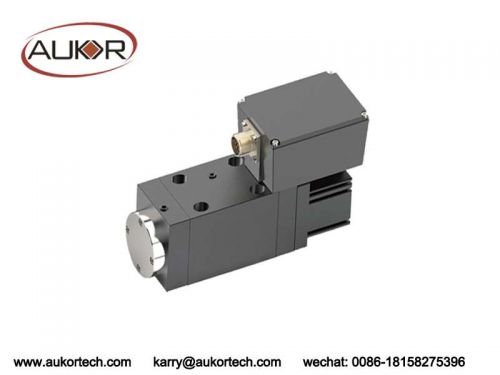

H10 High-speed Servo Valve

Features:

• Santest DA Series Valve Cross Reference to some extent.

• Voice coil technology applied and it generates strong thrust force and moves together with spool in an axial direction.

• Equipped with detecting magnets at the other end of spool thus positional signal and velocity signal of the spool can be detected.

• Step response: It can reach 1.2ms (0 - 100% command signal).

• Frequency response: Under ±25% command signal, the -3dB frequency can reach 750Hz, and the -90° frequency can reach 540Hz.

• High safety: In case of emergency power failure, the spool will return to the pre-determined position under the action of the spring.

• High contamination tolerance: Hydraulic cleanliness level NAS 1638 level 8 / ISO 4406 -1999 19/16 can be used.

Dimensions： 189.5x77.7x136.6mm

Mounting Interface：ISO 4401-05-05-0-5

Vibration resistance：-40 … +80℃

Ambient temperature：-20 … +60℃

Storage temperature：-40 … +80℃

Weight： 9000g

Drive：Voice coil motor

Valve version: 4-way and the main valve consists of coupled spool and sleeve

Contamination Resistance: NAS 8

Maximum operating pressure： 350Bar

operating pressure：Port P, A, B<350; Port T without Y <50; Port Y <0.5

Rated current：15-40mA

Coil Resistance：80-200Ω

Hysteresis：<1%

Resolution threshold： <0.3%

Linearity：<7.5%

Symmetry：<10%

Pressure Gain：>30%

Zero Offset：<1%

Lao：<2.5%

Supply Oil Pressure Zero Drift(80%～110%)Ps：<2%

Return Oil Pressure Zero Drift(0～20%)Ps：<2%

Temperature zero drift(-30～+150℃)：<4%

Step response（100% signal）：<3%

Frequency Response（±25% signal）:>500Hz

Insulation Resistance：>50MΩ

Hydraulic oil：DIN52524-Part 1 ...Part 3 / ISO11158

Suggested oil viscosity：15-100cSt

Oil viscosity：5-400cSt

Rated flow rate：10L/min,20L/min,40L/min,60L/min,80L/min

Maximum flow rate：120L/min

Leakage@210bar:<2%QN

Contamination Resistance:

ISO 4406 for Normal Condition ; 17 / 14 / 11 for Long Service Life Application (Wear Condition)

Signal：+/- 10V，+/- 10mA，4...20mA
