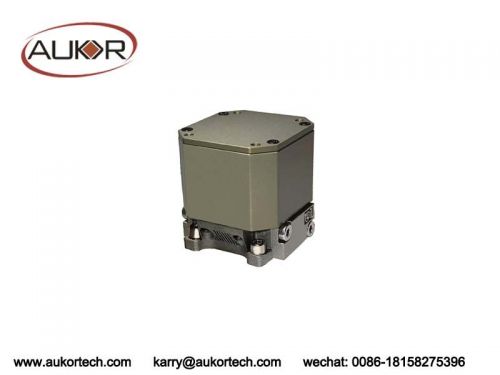

A1 Series Rotary Direct Drive Servo Valves
Advantages:
MOOG E024 Cross Reference to some extent.
Miniaturised and compact structure.
Independent intellectual property rights.
Low leakage and Contamination-resistant.
High pressure resistant and High frequency response.
Applications: military, aerospace, robotics , mobile platforms, etc.
Dimension： 34.5x31.3x34.5mm
Mounting Interface：A1: Same to MOOG E024
Drive： Rotary Motor
Electronics: Integrated
Contamination-resistance：NAS8
Vibration resistance：3Axis, 30g
Environmental temperature：-20 … +85℃
Weight： 80g（A1）,204g（A3）,820g（A7）,660g（A8）
Maximum operating pressure： 350Bar(Port A,B,P),100Bar(Port T)
Hydraulic oil：DIN51524 - 535
Viscosity：5-500cSt
QN/Rated flow,Per Throttle Edge ΔP=35 bar: 7L/min
Internal leakage @ 210bar:<0.2%L/min
Step response(100% signal): <2.5ms
Frequency response(±25% signal): >200Hz
Hysteresis: <1%
Threshold: <0.1%
Null bias: <0.2%
Supply voltage: 20 - 28V (Typical 24V)
Input signal: +/-10V, +/-40mA
Maximum supply current: 3A
EM compatibility: EN55011-2016+A1
Bushing Spool Type: A(Zero-lap)
Seal Material: NBR / FKM
PN: A1H07AE4N
